Rich Code Search Facilities

Introduction

What the tremendous success of Google told us is that being able to find the right information quickly is essential. Here both Time spent searching and Relevancy of the result found are the important assets.

We, developers, spend a significant amount of time searching code elements in our code base. Every developer tools, including Visual Studio, come with some sort of search criteria. So let's focus on what makes the NDepend’s Code Rich Searching Experience unique.

Contrary to other tools, NDepend Code Search supports numerous criteria including Searching by Name, Size, Complexity, Coupling, Popularity, Coverage, Visibility, Mutability, Purity, Change and Coverage of Changes. Let's begin with what is certainly the most used criteria for searching in a code base, Search by Name.

Search by Name

In Visual Studio, the two shortcuts Alt+M and Alt+C can be used to search Methods or Classes by name.

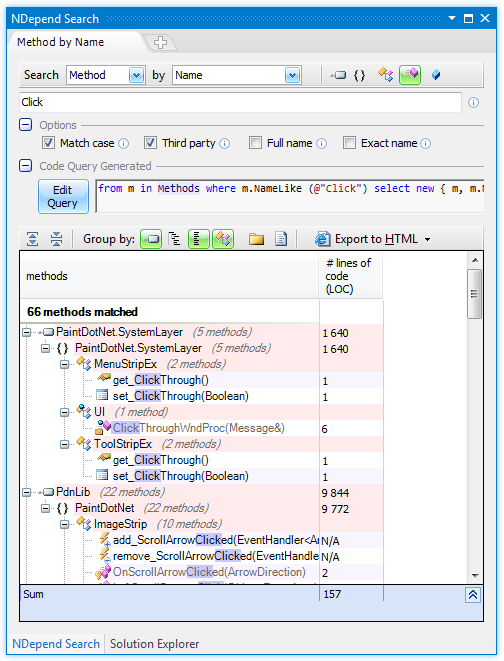

Suppose one wants to search a click handler method but doesn’t remember where it is. The first step is searching for methods whose names include the sub-string "Click":

ndepend search methods by name with code query generation

Several things to notice here:

  • The Click keyword is highlighted in method result. This helps to spot more quickly the searched code element(s).
  • Method can be grouped by declaring assembly/namespace/type. This make the search much more efficient because in the general case, we have a clue of where the method searched should be declared.
  • Under the hood, the search is based on the CQLinq Query below, generated from the user inputs.
    from m in Methods
    where m.NameLike (@"Click")
    select new { m, m.NbLinesOfCode }

Performance of Search

Something that cannot be shown on screenshots is that NDepend search is fast, very fast: for example matching the 388.746 methods of the .NET Framework v4.0 that contain an "e" in the name is immediate.

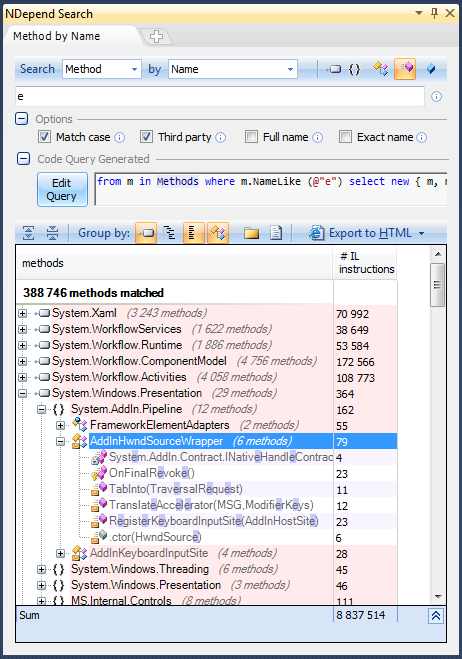

ndepend search methods by name with code query generation on a large code base

Multi Regex Support

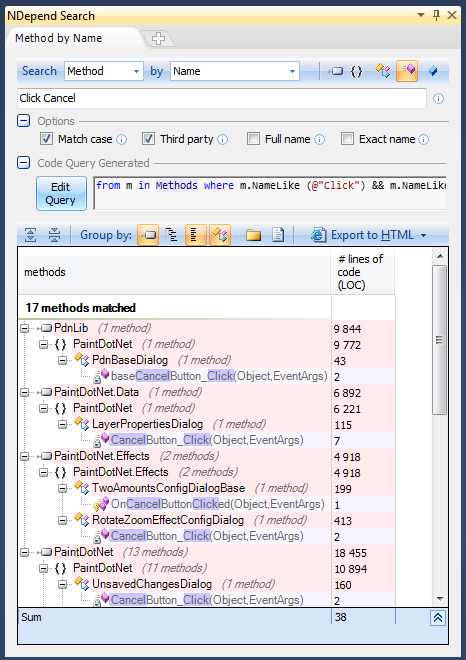

Let’s refine our search criteria. Suppose that the method to find, is a click event handler for a cancel button. Notice now the CQLinq Query generated that contains 2 NameLike clauses:

from m in Methods
where m.NameLike (@"Click") &&

m.NameLike (@"Cancel")
select new { m, m.NbLinesOfCode }
ndepend search methods by name with code query generation with multiple regular expressions

More generally the CQLinq condition NameLike can be parameterized with any regular expression. You suddenly remember that your method should begin with "Cancel", upper case. Just click the lower case tick box and suffix your regex with ^, which means in regex terms begin with:

ndepend search methods by name with code query generation with a regular expression

Search Third-Party Code by Name

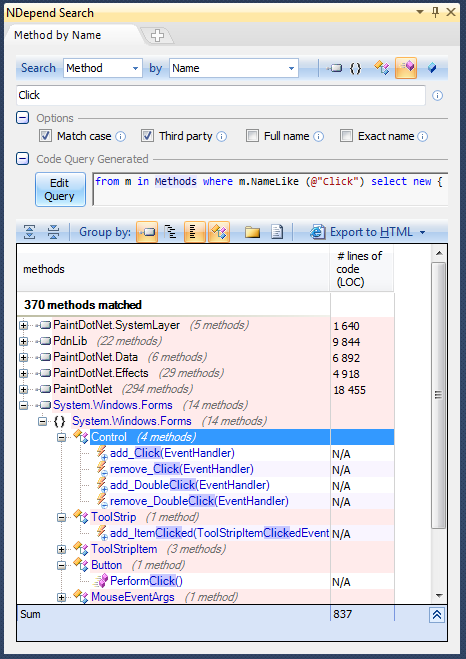

The search can also easily include third-party code elements. Clicking the Include third-party tickbox has for effect to discard the !IsThirdParty CQLinq restrictive condition.

ndepend search third-party methods by name with code query generation

Search on Full Name

Also, you can extend the search to the full name. In other words, one can match any method whose name, type or namespace contains "Click". For example, all methods declared in a class named like ToolClickedEventArg, are now matched.

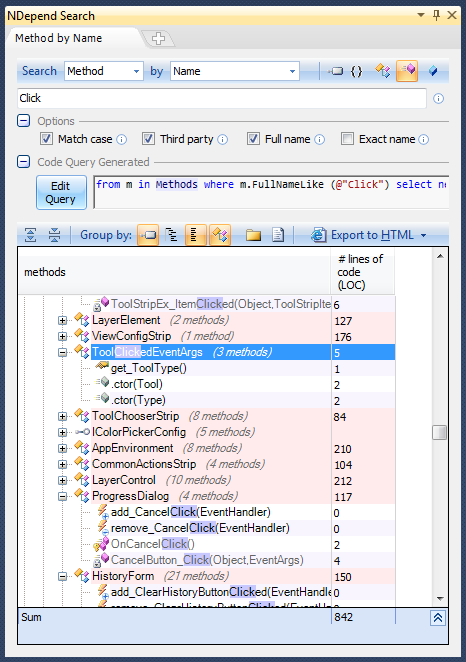

ndepend search methods by full name with code query generation

Refining Search by Name with CQLinq

And because all this is based on CQLinq, you can easily edit the CQLinq Query generated and refine it at whim, like for example, to match static methods with "Click" in the name.

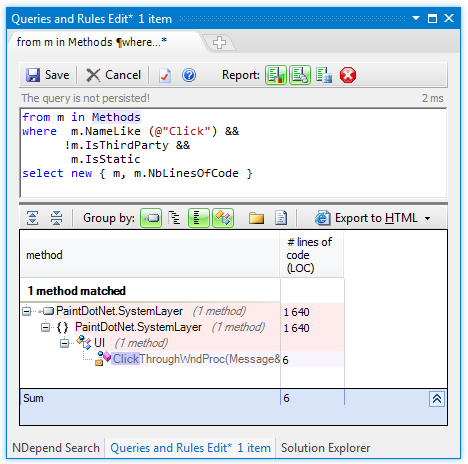

ndepend search methods by name with code query refined

Search by other Criteria than Name

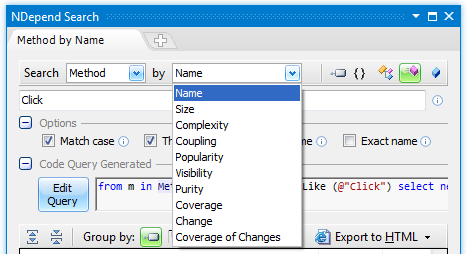

It is possible to search for methods, fields, types, namespaces and assemblies according to many other criteria than name. Keep in mind that in any case, all NDepend searching facilities are actually some CQLinq queries generator. So all the search criteria supported target particular CQLinq clauses.

ndepend search code element by various criteria with code query refined

Search by Size

It is possible to search for methods, types, namespaces and assemblies according to their size. The size if measured with the metric Lines of Code. If this metric is not available (because PDB files were not available at analysis time) the metric number of IL instructions is chosen.

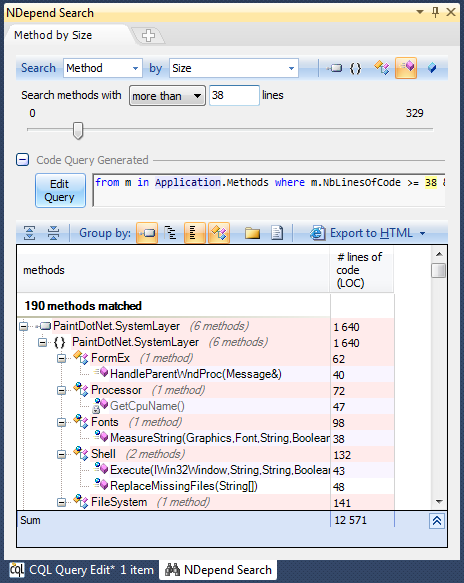

ndepend search methods by size with code query generation

Search by Complexity

It is possible to search for methods, types, namespaces and assemblies according to their complexity. The size if measured with the metric source file Cyclomatic Complexity. If this metric is not available (because PDB files or source files were not available at analysis time) the metric IL Cyclomatic Complexity is chosen.

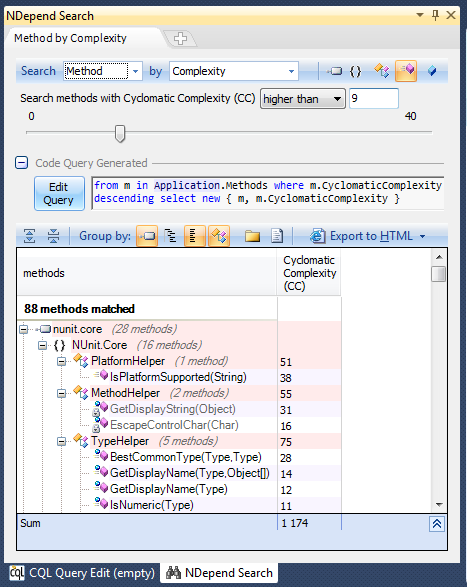

ndepend search methods by complexity with code query generation<

Search Coupling in Code

It is possible to search for code elements according to their coupling. The Afferent Coupling metric value of a code element X represents the number of code elements users of X. The Efferent Coupling metric value of a code element X represents the number of code elements used by X.

Typically high Afferent Coupling indicates a popular code element. A high Efferent Coupling indicates a god code element, meaning a code element that has intimate knowledge of a large portion of the code base. Hence, a too high Efferent Coupling value for a type or a method should be considered as a code smell. More details on this topic can be found in Code metrics on Coupling, Dead Code, Design flaws and Re-engineering.

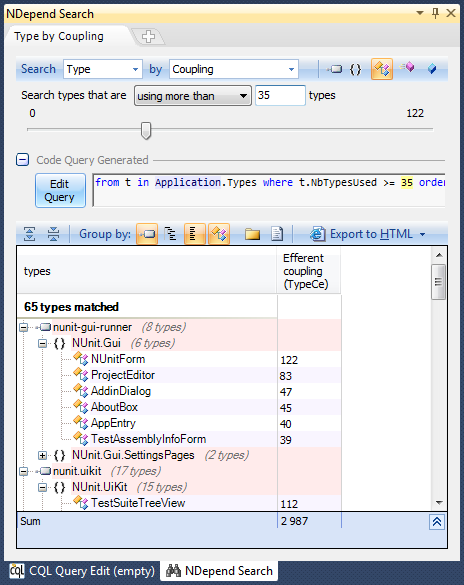

ndepend explore classes coupling with code query generation

Search by Popularity

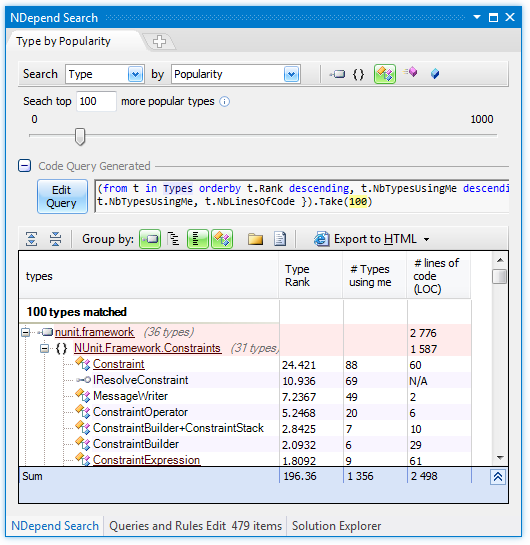

It is possible to search for types and methods according to their popularity. The popularity of a code elements is computed according to the Ranking metric (the same metric originally used by Google to compute page rank).

ndepend search classes by popularity with code query generation

Search by Visibility

It is useful to search methods, fields or types according to their level visibility (private, protected, internal, internal protected, public). As shown in the screenshot, it is also possible to also ask for code elements that could have a more restrictive level of visibility. For example, if a method is tagged as CouldBePrivate by NDepend, it means that it is not declared as private and, in the context of the application it is only used inside its declaring type.

ndepend search classes by visibility with code query generation

Search by Immutability / Purity

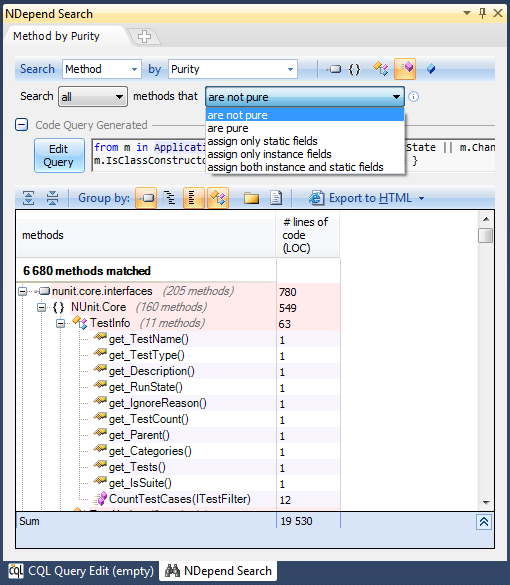

It is possible to search for immutable types and fields, and pure methods. More about this topic can be found in the article Immutable types: understand their benefits and use them.


ndepend search methods by purity with code query generation

Search by Code Coverage Ratio by Tests

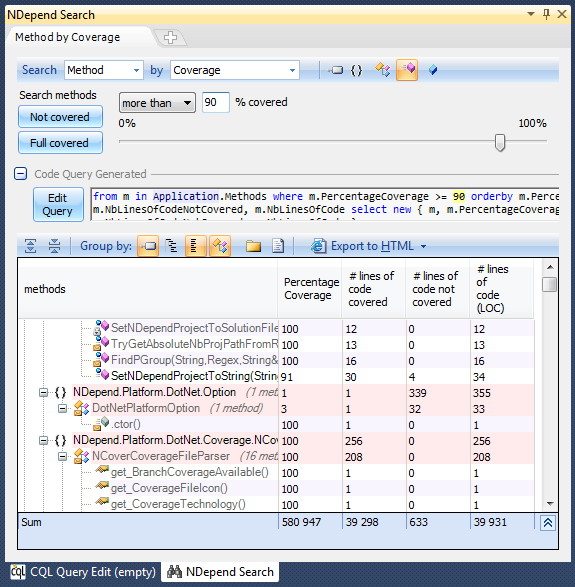

It is possible to search for methods, types, namespaces and assemblies according the ratio of their coverage by tests. Code coverage data are extracted from results produced by dedicated third party tools as explained in the Coverage FAQ section.

ndepend search methods by code coverage ratio with code query generation

Search in Diff between two versions of the code

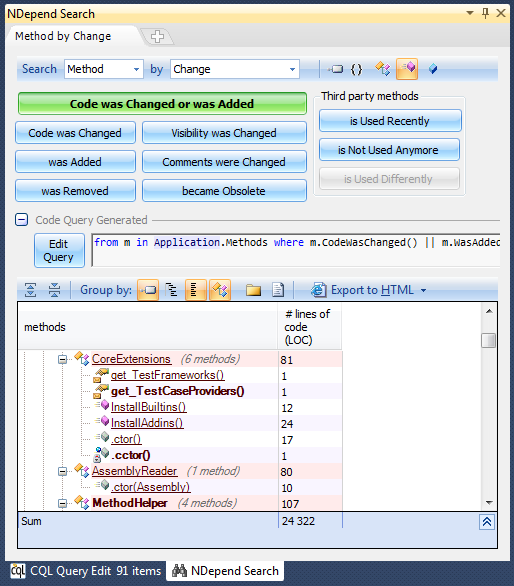

It is possible to search for Diff between 2 snapshots of the code base. This possibility is described in the section Advanced Code Diff with NDepend.

ndepend search within the code delta since the baseline with code query generation

Search by Code Coverage by Tests of Diff

It is possible to search for refactored or new code elements not properly covered by tests. This possibility is especially useful for team who care for code coverage. Here the following code query is generated:

from m in Application.Methods
where m.CodeWasChanged() && m.PercentageCoverage < 100
orderby m.PercentageCoverage descending,

m.NbLinesOfCodeCovered,

m.NbLinesOfCodeNotCovered,

m.NbLinesOfCode
select new { m, m.PercentageCoverage,

m.NbLinesOfCodeCovered,

m.NbLinesOfCodeNotCovered,

m.NbLinesOfCode }

More details can be found in the article Are you sure your added and refactored code is covered by tests?.

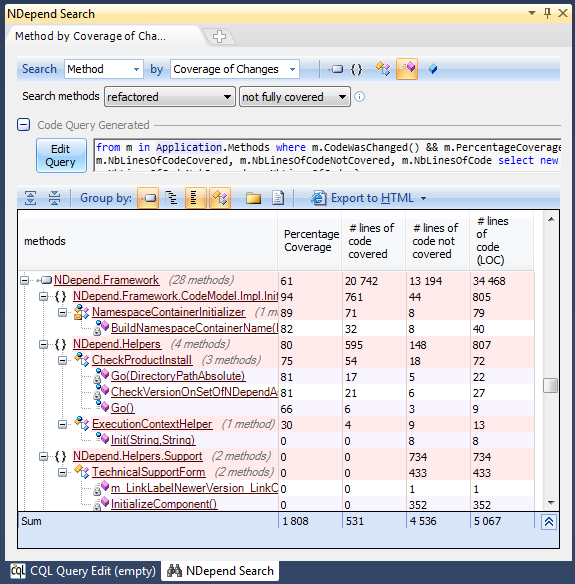

ndepend search code coverage ratio within the code delta since the baseline with code query generation
